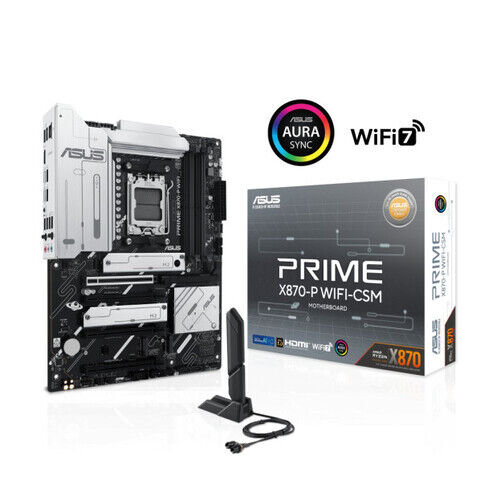

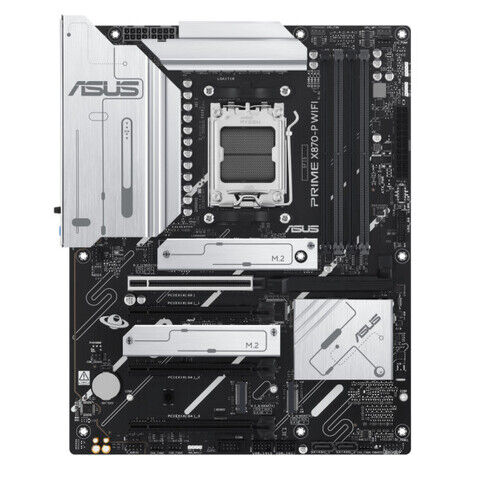

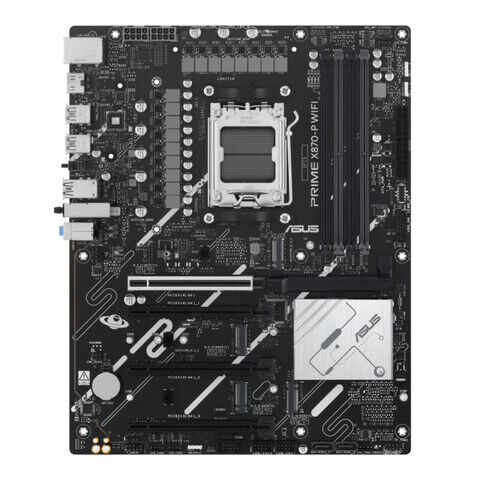

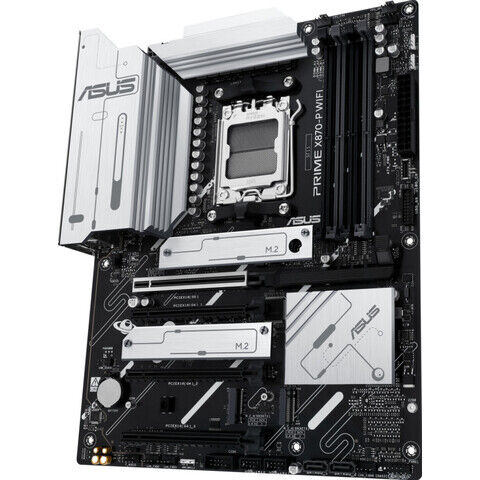

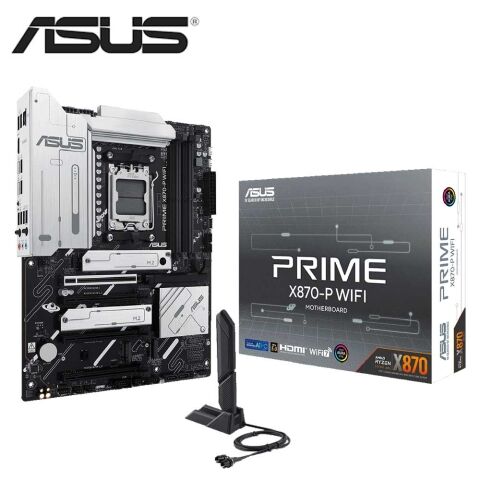

ASUS｜エイスース AMD X870 チップセット搭載ATXマザーボード 「PRIME X870-P WIFI-CSM」 PRIME/X870P/WIFI-CSM 【返品種別B】

※マザーボードの出荷時BIOS(UEFI)バージョンにつきましては、お調べする事ができません。予めご了承ください。
※海外生産品のため「お取り寄せ」商品につきまして、お届けに1ヶ月以上お時間がかかる場合がございます。また、急遽メーカー生産完了となりお取り消しさせていただく場合がございます。


【 ご購入後のお問い合わせ先につきまして 】
初期不良判断・修理等のお問い合わせにつきまして「CFD ASUSサポート」をご利用ください。
https://www.cfd.co.jp/biz/other/support-asus.html

◆堅牢な電源ソリューション
14(80A) + 2(80A) + 1(80A)電源ステージ、8 + 8 PIN ProCool電源コネクタ、Digi+ VRM、8層PCB

◆包括的な冷却
拡大されたVRMヒートシンク、AI Cooling ll、M.2ヒートシンク、PCHヒートシンク、ASUS Fan Xpert 4

◆次世代の接続性
PCIe 5.0スロット、PCIe 5.0 M.2スロット、リアUSB 40Gbps Type-C 、フロントUSB Type-C (10GB)

◆オンラインゲームに最適
WIFI 7、2.5Gb＆10Gbイーサネット、LANGuard

◆DIYフレンドリー
M.2 Qラッチ、プリマウントされた I/O シールド、Q-リリース、Q-LED Core、BIOS FlashBack

◆ASUS Control Center Express
強化されたデータ保護を実現するリアルタイム IT 監視および管理ソフトウェア


■　仕　様　■

• 対応CPU：AMD Socket AM5 for AMD Ryzen 9000 ＆ 8000 ＆ 7000 Series Desktop Processors
  ※Refer to https://www.asus.com/support/download-center/ for CPU support list.
• 搭載チップセット：AMD X870 Chipset
• メインメモリー：
  4 x DIMM slots max. 192GB DDR5
  Supports up to 8000+MT/s(OC) with Ryzen 9000 ＆ 8000 ＆ 7000 Series Processors
  ECC and Non-ECC Un-buffered DIMM※
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO)
  ASUS Enhanced Memory Profile (AEMP)
  ※Supported memory types data rate (speed) and number of DRAM modules vary depending on the CPU and memory configuration for more information please refer to CPU/Memory Support list under the Support tab of product
  information site or visit https://www.asus.com/support/download-center/.
  ※Non-ECC un-buffered DDR5 memory supports On-Die ECC function.
• グラフィックス機能：
  1 x HDMI port※
  2 x USB4 (40Gbps) ports support USB Type-C display outputs※※※
  ※Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ※※Supports 4K@60Hz as specified in HDMI 2.1.
  ※※※Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
  ※※※※VGA resolution support depends on processors' or graphic cards' resolution.
• 拡張スロット：
  AMD Ryzen 9000 ＆ 7000 Series Desktop Processors※
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)※※
  AMD X870 Chipset
  3 x PCIe 4.0 x16 slots (support x1 mode)※※※
  ※Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  ※※Specifications vary by CPU types.
  ※※※PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
  ※※※PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
  - To ensure compatibility of the device installed please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
• ストレージ機能：
  Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports※
  AMD Ryzen 9000 ＆ 7000 Series Desktop Processors
  M.2_1 slot (Key M) type 2280 (supports PCIe 5.0 x4 mode)
  AMD Ryzen 8000 Series Desktop Processors
  M.2_1 slot (Key M) type 2280 (supports PCIe 4.0 x4 mode)
  AMD X870 Chipset
  M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode)※※
  M.2_3 slot (Key M) type 2280 (supports PCIe 4.0 x4 mode)※※※
  M.2_4 slot (Key M) type 2280 (supports PCIe 3.0 x2 mode)※※※※
  2 x SATA 6Gb/s ports※※※※
  ※AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supportted by AMD Ryzen 9000 series CPU.
  ※※PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
  ※※※PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
  ※※※※M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
• Ethernet：1 x Realtek 2.5Gb Ethernet/ASUS LANGuard
• Wi-Fi：
  Wi-Fi 7※
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band※※
  Supports Wi-Fi 7 160MHz bandwidth up to 2.9Gbps transfer rate.
  Bluetooth v5.4※※※
  ※Wi-Fi features may vary depending on the operating system
  For Windows 11 Wi-Fi 7 will require 24H2 or later version for full functions Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  For Windows 10 please note that no driver is available please refer to the Wi-Fi chipset vendor's website for details.
  ※※Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  ※※※The Bluetooth version may vary please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB機能：
  Rear USB (Total 10 ports)
  2 x USB4 (40Gbps) ports (2 x USB Type-C)
  1 x USB 10Gbps port (1 x Type-A)
  3 x USB 5Gbps ports (3 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 10Gbps connector (supports USB Type-C)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  ※USB Type-C power delivery output: max. 5V/3A
• オーディオ機能：
  Realtek 7.1 Surround Sound High Definition Audio CODEC※
  - Supports: Jack-detection Multi-streaming Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
  Audio Features
  - Audio Shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers
  ※A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• 背面インターフェース：
  2 x USB4 (40Gbps) ports (2 x USB Type-C)
  1 x USB 10Gbps port (1 x Type-A)
  3 x USB 5Gbps ports (3 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x HDMI port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack button
• Internal I/O Connectors：
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage Related
  4 x M.2 slots (Key M)
  2 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps connector (supports USB Type-C)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin System Panel header
• 特別な機能：
  ASUS 5X PROTECTION III
  - DIGI+ VRM (- Digital power design with DrMOS)
  - LANGuard
  - Overvoltage protection
  - SafeSlot
  - Stainless-steel back I/O
  ASUS Q-Design
  - M.2 Q-Latch
  - PCIe Slot Q-Release
  - Q-Antenna
  - Q-Dashboard
  - Q-DIMM
  - Q-LED Core
  - Q-Slot
  ASUS Thermal Solution
  - Flexible M.2 heatsink
  - VRM heatsink design
  ASUS EZ DIY
  - BIOS FlashBack button
  - BIOS FlashBack LED
  - ProCool
  - Pre-mounted I/O shield
  - SafeSlot
  Aura Sync
  - Addressable Gen 2 headers
• Software Features：
  ASUS Exclusive Software
  Armoury Crate
  - Aura Creator
  - Aura Sync
  - Fan Xpert 4 (with AI Cooling II)
  - Power Saving
  ASUS DriverHub
  ASUS GlideX
  TurboV Core
  ASUS CPU-Z
  Norton 360 for Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - ASUS MyHotkey
• BIOS機能：256 Mb Flash ROM UEFI AMI BIOS
• その他：WOL by PME PXE
• 主な付属品：
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x M.2 rubber package
  2 x Screw packages for M.2 SSD
  Documentation
  1 x ACC Express Activation Key Card
  1 x Quick start guide
• OS：Windows 11
• フォームファクター（サイズW×D）：ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
