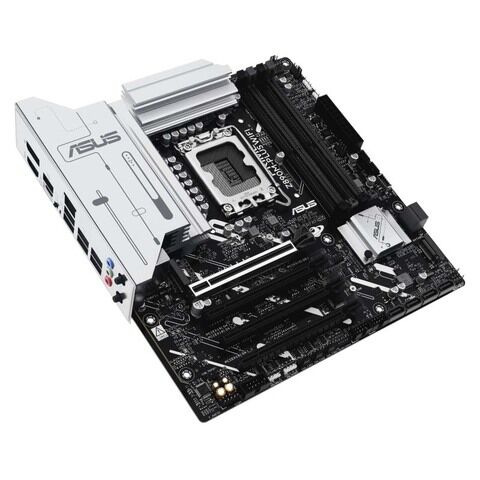

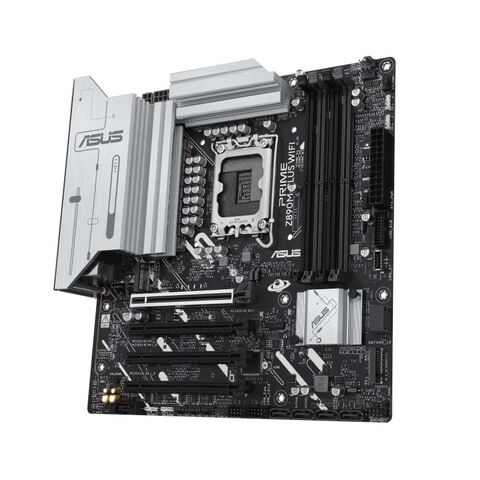

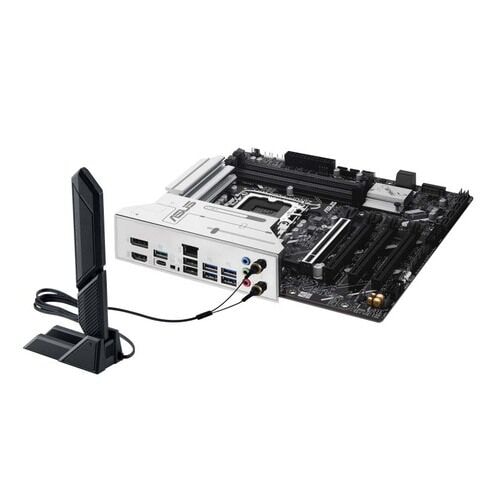

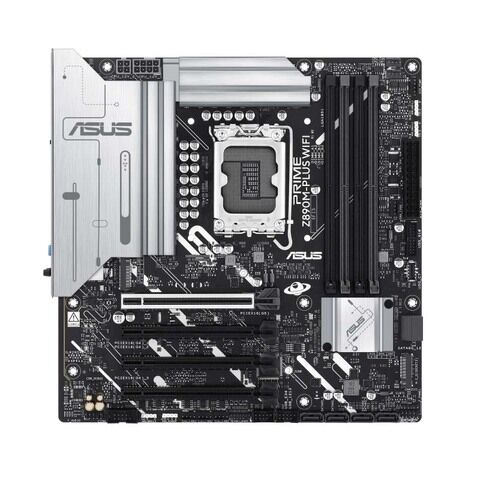

ASUS｜エイスース Intel Z890 Chipset 搭載 mATXマザーボード 「PRIME Z890M-PLUS WIFI-CSM」 PRIMEZ890MPLUSWFCSM 【返品種別B】

※マザーボードの出荷時BIOS(UEFI)バージョンにつきましては、お調べする事ができません。予めご了承ください。
※海外生産品のため「お取り寄せ」商品につきまして、お届けに1ヶ月以上お時間がかかる場合がございます。また、急遽メーカー生産完了となりお取り消しさせていただく場合がございます。


【 ご購入後のお問い合わせ先につきまして 】
初期不良判断・修理等のお問い合わせにつきまして「CFD ASUSサポート」をご利用ください。
https://www.cfd.co.jp/biz/other/support-asus.html

◆堅牢な電源ソリューション
：10(80A) + 1(80A) + 2(80A) + 1(80A)電源ステージ、8 + 8 PIN ProCool電源コネクタ、Digi+ VRM、6層PCB

◆包括的な冷却
拡大されたVRMヒートシンク、AI Cooling ll、M.2ヒートシンク、PCHヒートシンク、ASUS Fan Xpert 4

◆次世代の接続性
PCIe 5.0スロット、リアUSB 20Gbps Type-C with DP Alt mode、1 x Thunderbolt (USB4) header

◆オンラインゲームに最適
WIFI 7、2.5Gbイーサネット、LANGuard

◆DIYフレンドリー
Q-Antenna、プリマウントされた I/O シールド、BIOS FlashBack

◆ASUS Control Center Express
強化されたデータ保護を実現するリアルタイム IT 監視および管理ソフトウェア


■　仕　様　■

• 対応CPU：Support Intel Core Ultra Processors(series 2) LGA1851*Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
• 搭載チップセット：Intel Z890 Chipset
• メインメモリー："4 x DIMM slots max. 192GB DDR5Support up to7600+MT/s (OC) Non-ECC Un-buffered Clocked Unbuffered DIMM (CUDIMM)*"Dual channel memory architectureDIMM FitSupports Intel Extreme Memory Profile (XMP)* Supported memory types data rate (speed) and number of DRAM modules vary depending on the CPU and memory configuration for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC un-buffered DDR5 memory supports On-Die ECC function.
• グラフィックス機能：1 x DisplayPort**1 x HDMI port*** 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output*****Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Supports max. 4K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMI 2.1. ****Supports max. 4K@120Hz as specified in DisplayPort 1.4.***** VGA resolution support depends on processors' or graphic cards' resolution.
• 拡張スロット：Intel Core Ultra Processors *1 x PCIe 5.0 x16 slotIntel Z890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)2 x PCIe 4.0 x16 slots (support x1 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed please refer to https://www.asus.com/support/ for the list of supported peripherals.
• ストレージ機能：Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*Intel Core Ultra Processors *M.2_1 slot (Key M) type 2280 (supports PCIe 5.0 x4 mode)Intel Z890 ChipsetM.2_2 slot (Key M) type 2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M) type 2280 (supports PCIe 4.0 x4 mode)6 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10 SATA RAID 0/1/5/10 M.2 slot from CPU only supports RAID 0/1/5.
• Ethernet：1 x Realtek 2.5Gb EthernetASUS LANGuard
• Wi-Fi："Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 160MHz bandwidth up to 2.9Gbps transfer rate.Bluetooth v5.4****Wi-Fi features may vary depending on the operating system For Windows 11 Wi-Fi 7 will require 24H2 or later version for full functions Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10 only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth version may vary please refer to the Wi-Fi module manufacturer's website for the latest specifications."
• USB機能：Rear USB (Total 8 ports)1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)1x USB 10Gbps port (1 x Type-A)4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A) **Front USB (Total 7 ports)1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports*** USB Type-C power delivery output: max. 5V/3A** USB_E1 port USB_E2 port USB_E3 port and USB_E4 port share the bandwidth.
• オーディオ機能："Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection Multi-streaming Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback"Audio Features - Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• 背面インターフェース：1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)1x USB 10Gbps port (1 x Type-A)4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet3 x Audio jacks1 x BIOS FlashBack button
• Internal I/O Connectors：Fan and cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connector1 x 4-pin +12V CPU Power connectorStorage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s portsUSB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 10-1 pin Front System Panel header1 x Thunderbolt (USB4) header
• 特別な機能：ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- LANGuard - Overvoltage Protection- SafeSlot- Stainless-Steel Back I/OASUS Q-Design - Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- ProCool- Pre-mounted I/O shieldAura Sync- Aura RGB header- Addressable Gen 2 headers
• Software Features：ASUS Exclusive SoftwareArmoury Crate- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Power SavingASUS DriverHubASUS GlideXTurboV Core ASUS CPU-ZNorton 360 for Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- ASUS MyHotkey
• BIOS機能：256 (128+128) Mb Flash ROM UEFI AMI BIOS
• その他：WOL by PME PXE
• 主な付属品：Cables2 x SATA 6Gb/s cables Miscellaneous1 x ASUS WiFi Q-Antenna3 x Screw packages for M.2 SSDDocumentation1 x Quick start guide
• OS：Windows 11 (22H2 ＆ later)
• フォームファクター（サイズW×D）：mATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
• 寸法：244mm*244mm*49mm
• Color Box (mm)：275mm*274.5mm*67.5mm
• 製品重量：1.027 Kg
• 製品重量（梱包あり）（KG）：1.641 Kg
