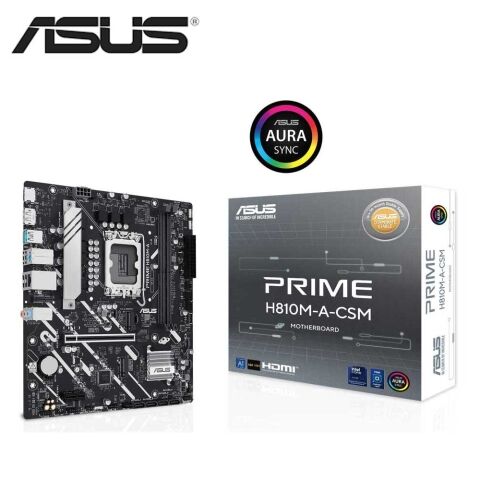

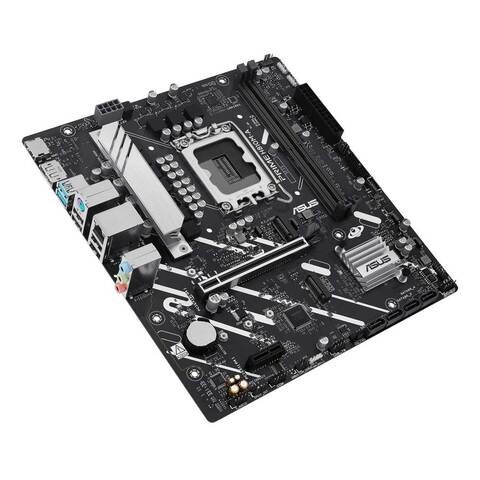

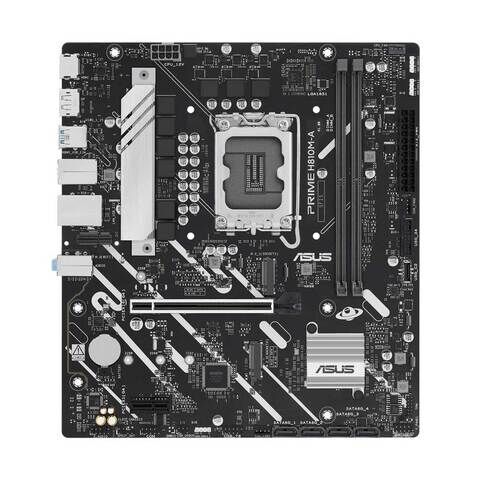

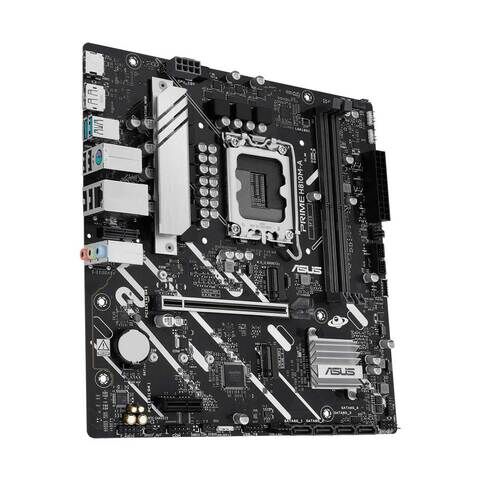

ASUS｜エイスース Inte H810 Chipset 搭載　micro-ATXマザーボード「PRIME H810M-A-CSM」 PRIME/H810M-A-CSM 【返品種別B】

【 ご購入後のお問い合わせ先につきまして 】
初期不良判断・修理等のお問い合わせにつきまして「CFD ASUSサポート」をご利用ください。
https://www.cfd.co.jp/consumer/support/contact_info/asus.html

※画像はイメージです。実際の商品と外観が異なる場合がございます。
※外箱・パッケージ等の擦れやへこみは初期不良ではありません。製品自体の不良が無い場合は交換返品をお受けできませんのであらかじめご了承ください。
※本製品には保証書が同梱されておりません。お買い上げ明細書(納品書)が保証書となりますので大切に保管してください。

◆超高速接続: PCIe 4.0、2 つの M.2 スロット、Intel 1Gb イーサネット、USB 3.2 Gen 2 をサポート
◆包括的な冷却: VRM ヒートシンク、PCH ヒートシンク、Fan Xpert 2+
◆Aura Sync RGB: オンボードのアドレス指定可能な Gen 2 ヘッダーと RGB LED ストリップ用の Aura RGB ヘッダー。Aura Sync 対応ハードウェアと簡単に同期できます
◆ASUS Control Center Express: 強化されたデータ保護を実現するリアルタイム IT 監視および管理ソフトウェア

■　仕　様　■

• 対応CPU：Support Intel Core Ultra Processors (Series 2) LGA1851
  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  Refer to https://www.asus.com/support/download-center/ for CPU support list.
  Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
• 搭載チップセット：Intel H810 Chipset
• メインメモリー：2 x DIMM slots max. 128GB DDR5
  Supports up to 6400MT/s Non-ECC Un-buffered Clocked Unbuffered DIMM (CUDIMM)
  Dual channel memory architecture
  DIMM Fit
  Supports Intel Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile II (AEMP II)
  Supported memory types data rate (speed) and number of DRAM modules vary depending on the CPU and memory configuration for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
  Non-ECC un-buffered DDR5 memory supports On-Die ECC function.
• グラフィックス機能：
  　1 x DisplayPort
  　1 x HDMI port
  Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  Supports 4K@60Hz as specified in HDMI 2.1.
  VGA resolution support depends on processors' or graphic cards' resolution.
• 拡張スロット：
  Intel Core Ultra Processors (Series 2)
  　1 x PCIe 4.0 x16 slot
  Intel H810 Chipset
  　1 x PCIe 4.0 x1 slot
  - To ensure compatibility of the device installed please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
• ストレージ機能：
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  Intel H810 Chipset
  M.2_1 slot (Key M) type 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  4 x SATA 6Gb/s ports
• Ethernet：1 x Intel 1Gb Ethernet port
  ASUS LANGuard
  With Intel I219V LAN Wake-on-LAN is not supported in S5 after the system transitions from G3.
• Wi-Fi：V-M.2 slot only (Key E CNVi ＆ PCIe)
  Wi-Fi module is sold separately.

• USB機能：
  Rear USB (Total 6 ports)
  　2 x USB 10Gbps ports (2 x Type-A)
  　4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 5 ports)
  　1 x USB 5Gbps connector (supports USB Type-C)
  　1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  　1 x USB 2.0 header supports 2 additional USB 2.0 ports
  USB Type-C power delivery output: max. 5V/3A
  USB_E1 port USB_E2 port USB_E3 port and USB_E4 port share the bandwidth.
• オーディオ機能：
  Realtek 7.1 Surround Sound High Definition Audio CODEC
  - Supports: Jack-detection Multi-streaming Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
  Audio Features
  - Audio Shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers
  A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

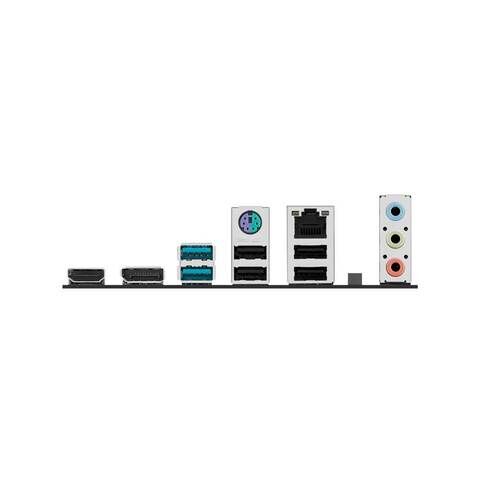

• 背面インターフェース：
  2 x USB 10Gbps ports (2 x Type-A)
  　4 x USB 2.0 ports (4 x Type-A)
  　1 x DisplayPort
  　1 x HDMI port
  　1 x Vertical M.2 slot (Key E)
  　1 x Intel 1Gb Ethernet port
  　3 x Audio jacks
  　1 x PS/2 keyboard/mouse combo port
• Internal I/O Connectors：
  Fan and Cooling Related
  　1 x 4-pin CPU Fan header
  　2 x 4-pin Chassis Fan headers
  Power Related
  　1 x 24-pin Main Power connector
  　1 x 8-pin +12V CPU Power connector
  Storage Related
  　2 x M.2 slots (Key M)
  　4 x SATA 6Gb/s ports
  USB
  　1 x USB 5Gbps connector (supports USB Type-C )
  　1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  　1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Miscellaneous
  　3 x Addressable Gen2 headers
  　1 x Clear CMOS header
  　1 x COM Port header
  　1 x Front Panel Audio header (F_AUDIO)
  　1 x S/PDIF Out header
  　1 x SPI TPM header (14-1 pin)
  　1 x 10-1 pin Front Panel System header
• 特別な機能：
  ASUS 5X PROTECTION III
  - DIGI+ VRM
  - LANGuard
  - Overvoltage protection
  - SafeSlot Core+
  - Stainless-steel back I/O
  ASUS Q-Design
  - Q-DIMM
  - Q-Dashboard
  - Q-LED Core
  - Q-Slot
  ASUS Thermal Solution
  - VRM heatsink design
  Aura Sync
  - Addressable Gen 2 headers
• Software Features：
  ASUS Exclusive Software
  Armoury Crate
  - Aura Creator
  - Aura Sync
  - Fan Xpert 2+
  - Power Saving
  ASUS DriverHub
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash
  - ASUS UEFI BIOS EZ Mode
  - ASUS MyHotkey
• BIOS機能：256 (128+128) Mb Flash ROM UEFI AMI BIOS
• 主な付属品：
  Cables
  　2 x SATA 6Gb/s cables
  Miscellaneous
  　1 x I/O shield
  　1 x Screw package for M.2 SSD
  Documentation
  　1 x ACC Express activation key card
  　1 x Quick start guide
• OS：Windows 11 (22H2 ＆ later) Windows 10 64-bit (21H2 ＆ later)
• フォームファクター（サイズW×D）：micro-ATX Form Factor
  9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
• Manageability：WOL by PME PXE
